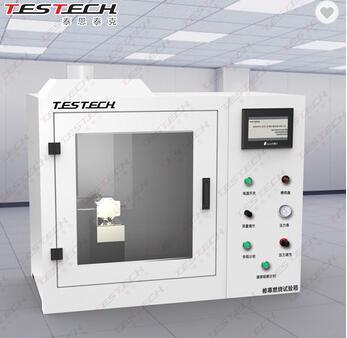

Mask Flame Retardant Test Machine

Product Description

The device is mainly used in the field of medical protection, and also can also be used for
testing flame retardant properties of  other textile coating materials.
Model:FTech-GB19083
Stabdard:
YY 0469-2011
GB 2626-2006
BS EN136-1998
FEATURES:

1. The mask clamp is a metal human head mold, which can fully simulate the actual use state of the mask.
2. Burner height is adjustable.
3. Automatic timing and positioning of burner.
4. Combustion time and flame retardant time are recorded automatically and displayed digitally
5. Equipped with flame temperature measuring probe and flame temperature display.
6. Automatic control system, automatic ignition
7. The burner is equipped with LPG interface
8. Automatic timing, automatic storage of test data

Parameters

1. The linear velocity of automatic movement of metal head is (60 ± 5) mm / S.
2. Flame height is adjustable 40 ± 4mm
3. Equipped with thermocouple for flame temperature measurement and detection
4. The flame temperature is (800 ± 50) ºC at a height of (20 ± 2) mm from the top of the burner
5. The distance between the top of burner and the lowest point of mask is (20 ± 2) mm
6. Burner height adjustment range is 30mm
7. The thickness of metal head is 2-3mm which is fire resistant
8. Timer: 0 ~ 9999.9 seconds, accuracy: ± 0.1 seconds
9. AC220V,50Hz,50W
10. Weight: About 30kg
